World’s first floating wind farm to be built off Scottish coast
In a deal between the Scottish government and Norwegian oil company Statoil, five wind turbines with a capacity of six megawatts each will be set on floating structures some 15 miles (25 km) off the northeast coast of Scotland near Peterhead. The Hywind pilot park, as it’s named, is claimed to be the first floating wind farm in the world, and will generate enough power for 20,000 homes with operations expected to start in late 2017.
The 30-M
W Hywind park will take advantage of average local North Sea wind speeds of around 19 knots and cover an area of around 1.5 sq mi (4 sq km) at a water depth of 310 to 395 ft (95-120 m).
Floating wind turbines can be placed away from the coast in deeper water as they don’t need to be anchored to sea floor-mounted towers, which are typically limited to a water depth of up to 260 ft (80 m). The optimal water depth for fixed turbines is 65 to 165 ft (20-50 m), however two-thirds of North Sea waters are between 160 and 720 ft (49 and 220 m) in depth.
There are several advantages to locating away from shore, including reduced visual pollution – meaning they won’t spoil anyone’s view, which is a common complaint by some coastal residents. They can also reap the benefits of stronger and more consistent winds typically found farther out at sea since they aren’t impeded by land features.
Floating wind farms are also less likely to interfere with fishing or shipping activity, and by stringing the turbines together in a farm, they can share a common infrastructure, such as power cables and transmission facilities.
The Hywind floating wind turbine technology has been in development for six years, with a 2.3-megawatt prototype installed in 720 ft (220 m) of water 6.5 miles (10 km) from the Norwegian island of Karmøy in 2009. It was the first large-capacity floating wind turbine to be put in use. The turbine generates 7.3 GWh, and has ably survived 36 ft (11 m) waves.

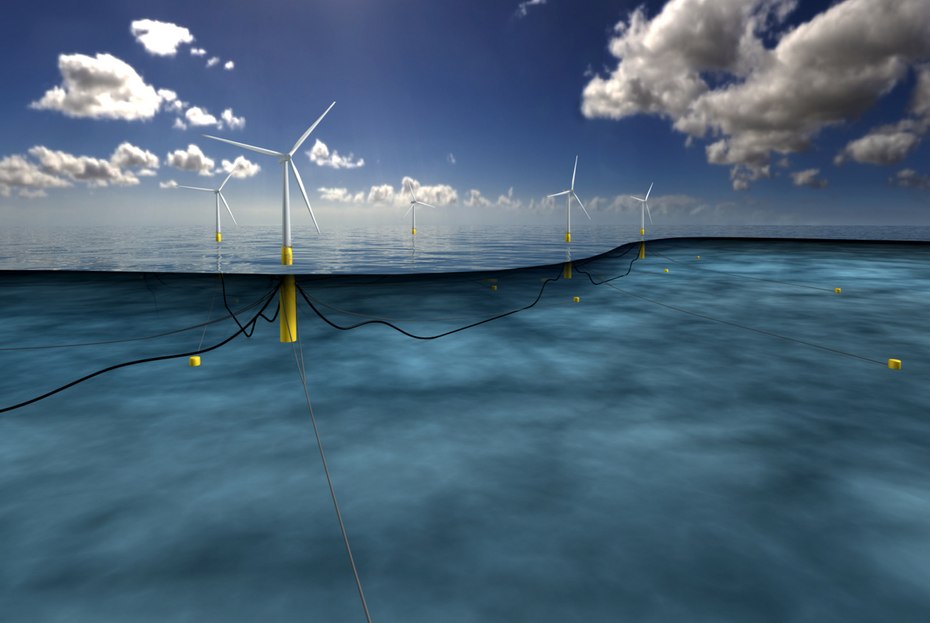

Like the turbine off Karmøy, the Hywind Scotland pilot park turbines will be moored by catenary cables to a single floating cylindrical spar buoy. The ballasted catenary adds 60 to
ns (54 tonnes) of weight hanging from the midpoint of each anchor cable for added tension.
Statoil believes its Hywind floating wind turbine technology will enable greater exploitation of
offshore wind resources by allowing expansion
into new deep-water areas around the world.
The video below gives an overview of the Hywind pilot park project.
Source: Statoil
